The Soval 1080 Series Ductile Iron Flanged Ball Check Valves are manufactured to ASTM A536 65-45-12 Standard designed for use in water and wastewater applications. Our ball check valve works when the ball inside the valve moves freely out of the path of flow, when the flow is drawn back in, the ball will automatically roll back to the closed position that will provide a positive seal to stop back flow.

Ductile Iron Flanged Ball Check Valve - SOVAL

Price: $138.96 - $2,677.38
MPN:
1080
Style:
Check
Type:
1080 Series Ball check
Body:
Ductile Iron
Connection:
Flanged
Model:
1080
Standard:
ASTM A536 65-45-12 Standard
Adding to cart… The item has been added

Description

1080 Series - Ductile Iron Flanged Ball Check Valve



The Soval 1080 Series Ductile Iron Flanged Ball Check Valves are manufactured to ASTM A536 65-45-12 Standard designed for use in water and wastewater applications. Our ball check valve works when the ball inside the valve moves freely out of the path of flow, when the flow is drawn back in, the ball will automatically roll back to the closed position that will provide a positive seal to stop back flow.

The Soval1080 Series Ductile Iron Body is coated Internally and Externally with a Fusion Bonded Epoxy (FBE) coating creating a smooth bore that will eliminate the risk of media deposits throughout the valve. Our valve comes with Flanged Connections that meet ANSI B16.1, Class 125. Our NBR covered Aluminum Ball will provide an integral seal for all water and wastewater applications.

Product Features

• Fully Rubber Coated Aluminum Ball

• Functions at a Low Pressure

• Horizontal and Vertical Installation

• Free Low Passage, Blockage Free

• Low Frictional Losses

• Max Pressure: 150PSI

• Temp Max: 248°F

• Maintenance Free

• 2" Through 12"

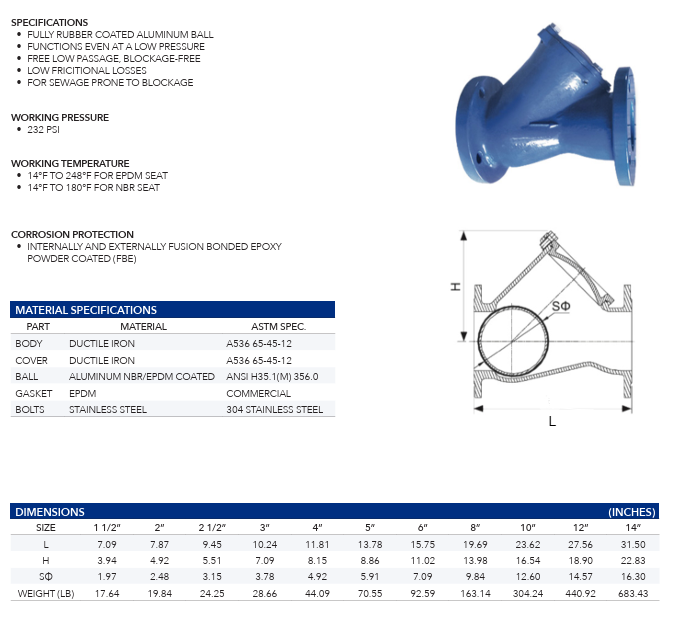

Standard Materials:

• Ductile Iron Body

• Ductile Iron Cover

• NBR Coated Aluminum Ball

• EPDM Gasket
