1020 Series - Ductile Iron Flex Check Valve

The SOVAL Flex Check Valve is designed with a precision molded disc with an integral o-ring type sealing surface and container alloy steel with Nylon Reinforcement in the flexible hinge area all manufactured to with stand a long lasting performing type of valve . The 1020 Series Flex Check comes equipped with a threaded port for a pipe plug on the bottom of the valve which will allow for field installation of a backflow actuator. Slamming and water hammer with the SOVAL 1020 Series Flex Check is virtually non-existent due to its short closing travel.

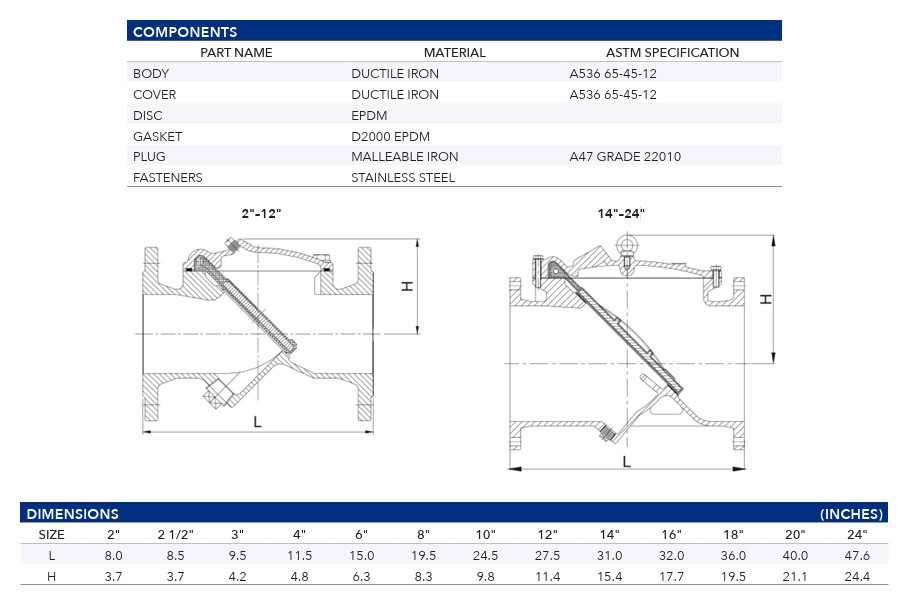

SPECIFICATIONS

• THE DISC IS PRECISION MOLDED WITH AN INTEGRAL O-RING TYPE SEALING SURFACE AND CONTAINS ALLOY STEEL WITH NYLON REINFORCEMENT IN THE FLEXIBLE HINGE AREA

• A THREADED PORT WITH PIPE PLUG ON THE BOTTOM OF VALVE TO ALLOW FOR FIELD INSTALLATION OF A BACKFLOW ACTUATOR

• SLAMMING AND WATER HAMMER VIRTUALLY NON-EXISTENT DUE TO ITS SHORT CLOSING TRAVEL

• FULL STOP-ENTRY ACCESS FOR EASY ON-LINE INSPECTION AND MAINTENANCE

• FLANGED AND DRILLING COMPLY WITH ANSI/ASME B16.1 CLASS 125

• CONFORMS TO AWWA C-508 • PRESSURE RATING: 250 PSI

• SIZES 2"–12" IN STOCK. SIZES 14"–24" SPECIAL ORDER ONLY

• FUSION BONDED EPOXY COATED INSIDE AND OUT
