Description

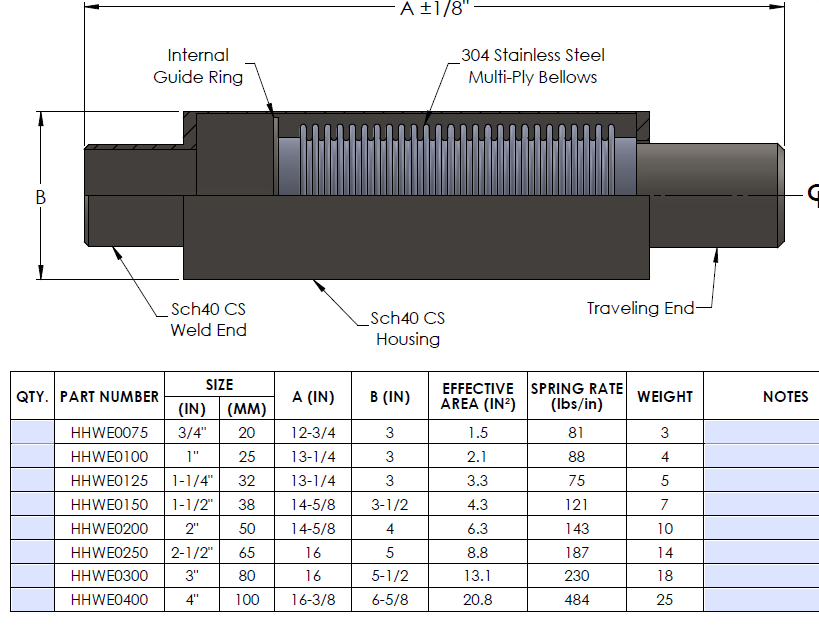

MMT (male thread), HWE (weld end) and FLG (Flanged)
2″ of compression, 1/2″ extension (2-1/2″ total stroke), steel threaded, flanged or welded ends
3/4 to 4″ pipe sizes. H Series Compensators are tested to a pressure of 250 psi for the recommended maximum operating pressure of 175 psi. Maximum temperature: 750° F.
The H Series, designed with pressure external to bellows, is extremely compact to save space. Bellows head is slotted to ride on an anti-torque rail.
Vertical or Horizontal Installation. Requires no maintenance.
All-metal construction includes a stainless steel bellows and high quality carbon steel housings and fittings. Welded construction throughout…with traveling nipple tack-welded with clip to insure proper installation. Standard with male thread ends and is also available with weld or flanged ends.
