The Series QC features quick connect clamp fittings, which allow for rapid removal of the valve for maintenance. This valve is widely used as a food grade valve due to its easy removal for frequent inspection and cleaning. The body of the Series QC Petite Pinch Valve typically consists of stainless steel and aluminum, with highly polished finishes. The end connections are normally supplied as Triclamp fittings.

Petite Pinch Valve – Type QC

Call For Current Pricing 610-255-7071

Availability:
Call for current lead time and prices, expedited build and shipping available
Elastomers:
EPDM, Viton, Buna N, Natural Rubber, Hypalon, Butyl , Neoprene, Teflon
Actuators:
Pneumatic
Body:
Stainless Steel, Aluminum
Sizes:
.5"-4"
Application:
Food Grade
Connections:
Quick Connect Clamp - Tri Clamp

Description

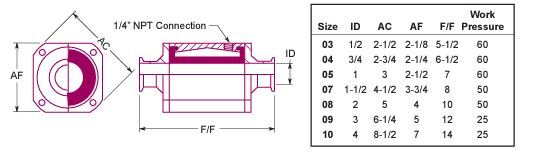

QC- Data Sheet

The Series QC features quick connect clamp fittings, which allow for rapid removal of the valve for maintenance. This valve is widely used as a foodgrade valve due to its easy removal for frequent inspection and cleaning. The body of the Series QC Petite Pinch Valve typically consists of stainless steel and aluminum, with highly polished finishes. The end connections are normally supplied as Triclamp fittings.
